Low Voltage Insulators Bus Bar Clamp For Switchboards
CT/CJ busbar support insulator is mainly used for support the busbar with different height in one equipment.
Popular used in distribution box,switchgear,inverter and green power.
CE,SGS,ROHS certificate for CT/CJ insulator
Material / Materiale:
-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃~140℃
Flammability / Autoestinguenza:V0

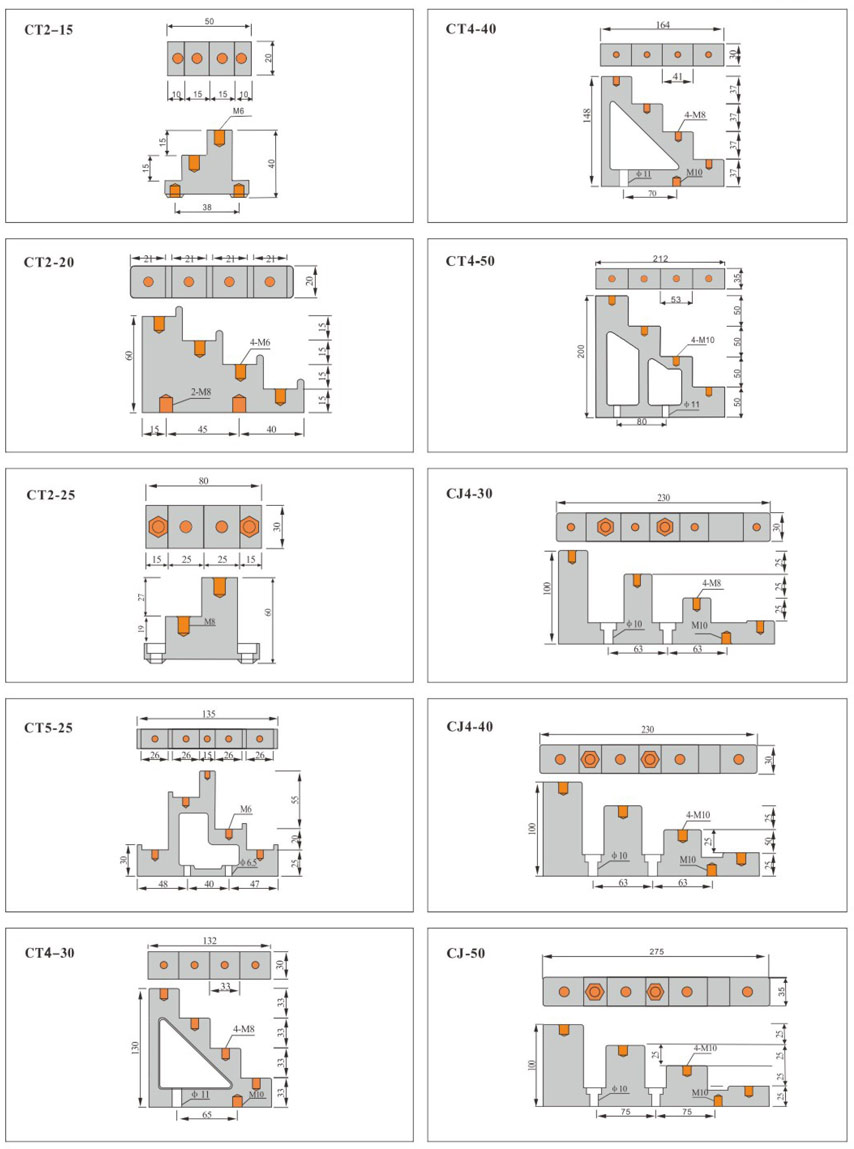

All dimensions are in mm /Tutte le quote sono in mm
Design Flexibility – Thermoset Composites give designers nearly unlimited flexibility in designing shapes and forms. They be molded into the most intricate components and can be made a wide range of densities and chemical formulations to have precise performance properties.
Low cost per cubic inch – When comparing costs based on volume, thermoset composites have lower material costs than traditional materials such as wood, engineered thermoplastics and metals. In addition, because thermoset composites have a low petroleum-based content, they are not subjected to the price fluctuations experienced in petroleum-based products.
Lower material costs – Because thermoset composites can be precisely molded, there is little waste and therefore significantly lower overall material costs than metals products.
Improved productivity – Industrial Designers and Engineers are able to reduce assembly costs by combining several previously assembles parts into a single component. Also, inserts can be molded directly into the part during the molding process thereby eliminating the need for a post-process. In addition, composites do not usually require additional machining, thereby reducing work-in-process and time to market.
|
|
New CJ3 - 30 Low Voltage Insulators Bus Bar Clamp For Switchboards Images
|
